Pallet Jack Dimensions: Know the Exact Size You Need

Pallet jacks are the most essential tools for truckers and are found in warehouses. This tool is used to move pallets into the truck. A pallet jack is also used to move small and short-distance loads into the warehouse.

Here is the complete guide on different types of pallet jacks.

Dimensions of a Standard Pallet

The standard pallet jack is also known as a GMA ( Grocery Manufacturers Association ) pallet jack. This pallet jack is most commonly used in the USA.

Dimensions

The standard pallet jack comes with a length of 48 inches. The width of only the fork is 48 inches. This pallet jack can go to a height of 6 inches.

Narrow Pallet Jack Dimensions

The narrow pallet jack is specially used to handle small pallets.

Dimension

The width of the narrow pallet jack is 20 inches. The total length of an individual fork is 37 to 42 inches.

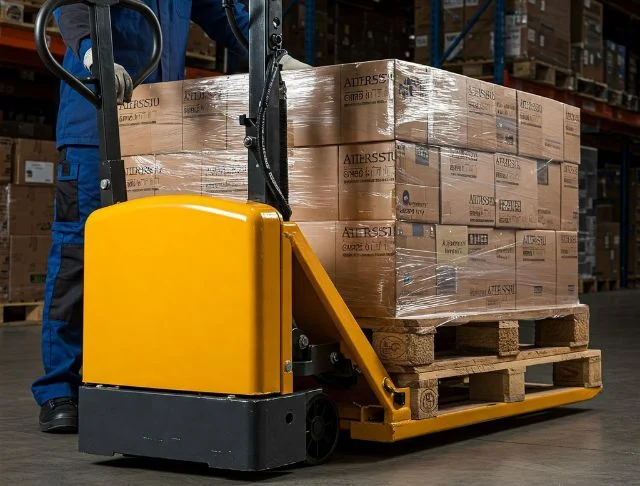

Electric Pallet Jack Dimensions

The electric pallet jacks are specially designed for longer use. They come in two types. The first one is known as a walkie, where you have to push it to move freight. The second one is a rider that you operate while sitting on it.

Dimensions

The electric pallet jack comes with a total width of 27 inches. The only fork length is between 36 to 47 inches. The height this pallet jack can go is 9 inches, and the lowest it can go is 3 inches.

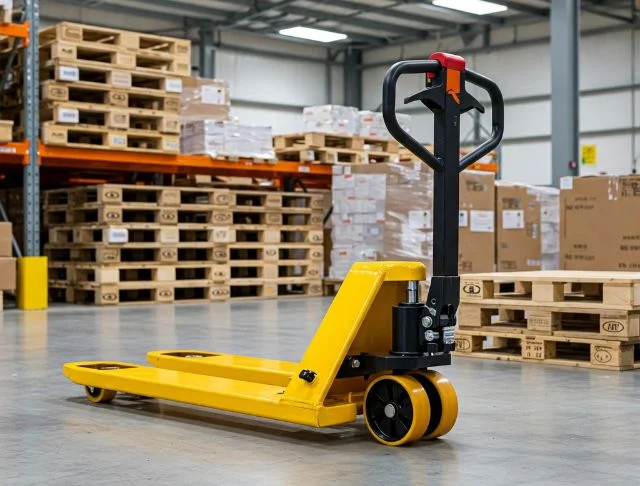

Manual Pallet Jack Dimensions

A standard pallet jack is also known as a manual pallet jack and a hand pallet jack. This pallet jack is specifically designed to move short loads over short distances.

Dimensions

A manual pallet jack comes with a forklift with a length of 48 inches. The width of the fork is 6.3 inches. The total width of the forklift is 27 inches. The lower height of the forklift is 3 inches, and the highest height is 8 inches, which makes it easy to insert in small places.

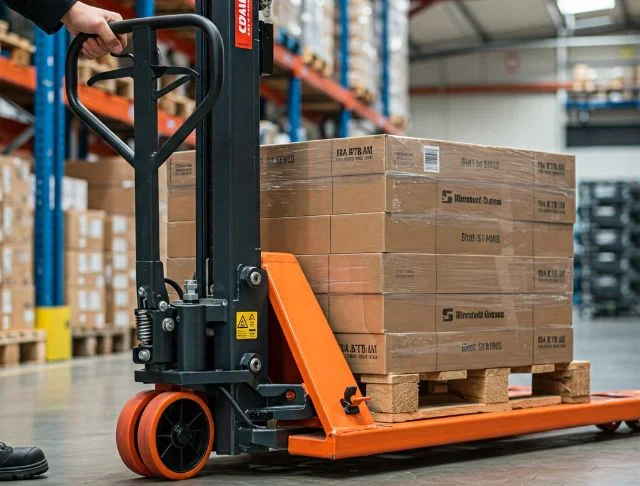

48 Hydraulic Pallet Jack Dimensions

This pallet jack comes with a hydraulic lifting mechanism. This pallet jack is commonly used to lift big boxes around the warehouses.

Dimensions

The width of only the fork is 6.3 inches. The whole width of this pallet jack is 27 inches. The highest this pallet can go is 7 inches, and the lowest is 2.9 inches.

Clark Pallet Jack Dimensions

The Clark pallet jack is specifically designed by the manufacturer with engineering and features.

Dimensions

The length of the fork is 48 inches. The total width of 27 inches. This pallet jack can be as low as 3 inches.

Crown Pallet Jack Dimensions

The crown pallet jack has common abilities like a standard pallet jack, with more robust features.

Dimensions

The total width of this pallet jack is 27 inches, with a length of 48 inches. The lowest this pallet jack can go is 2.9 inches.

Euro Pallet Jack Dimensions​

The euro pallet jack is specially designed to lift the euro pallet. These pallet jacks can lift 2500 kg.

Dimensions

The length of the fork is up to 45 inches, which can accommodate a length of 1200mm. The total width is 22 inches.

Jet Pallet Jack Dimensions

The jet pallet jack is similar to the standard pallet jack, specifically designed by manufacturers. This pallet jack can easily lift heavy freight.

Dimensions

The total length of this pallet jack is equal to the standard pallet jack is 48 inches. The lowest this pallet jack can go is 3 inches with a width of 27 inches. The highest this pallet jack can go is 8 inches.

Finding the Right Pallet Jack Dimensions for Your Needs

Finding the right pallet jack according to your work is essential. The choice of the pallet jack depends on what kind of load you move. If you work in open and big spaces, the standard pallet will work fine. For more small and congested spaces, you need to choose a pallet jack accordingly. Choosing the right pallet jack according to your work type can increase your productivity.

What to Consider When Choosing Your Pallet Jack

Here are some points you need to consider while choosing the pallet jack:

Pallet Size

The standard pallet jack is used to lift a 48 to 40 GMA pallet. For smaller and narrower pallets, use Euro pallets.

Weight Capacity

Different pallet jacks can handle different weights. Standard pallet jack lifts up to 5,000 pounds to move heavier loads, an electric pallet jack is the one.

Type of Use

A standard pallet jack is used for lighter loads and to move short-distance loads. For heavier loads, other pallet jacks are recommended.

Fork Length and Width

Pallet jacks with small forklifts are used to move freight in small and congested spaces. For wider and more open spaces, a pallet jack with a big fork is used.

Floor Surface

While choosing the pallet jack, consider the floor material of your workspaces. Choose according to the floor spaces, according to the factors such as whether it is smooth, concrete, or rough.

OSHA Guidelines For Pallet Jacks

Here is a guideline to use a pallet jack safely according to OSHA (Occupational Safety and Health Administration):

Safe Use

Before using the pallet, check it and make sure it’s not overloaded and the freight is fully secured.

Proper Parking

Before parking the pallet jack, it must be lowered fully and should be parked in a safe area.

Visibility and Travel

Before moving the load, make sure to have a clear view. If the load blocks the view, reverse the pallet jack.

Training and Certification

Before using any power pallet jack, have proper training. OSHA requires reevaluation every three years.

Conclusion

Choosing the right pallet jack according to your work nature is very important. Choose the pallet jack as per the weight of the freight you need to move. Before buying any pallet jack, keep all factors in mind, such as weight, space, and the amount of usage.

Use a pallet jack safely. Check it before using it. Take care of its maintenance. Park it in a safe place. If you are using a power pallet jack, get training and certification to avoid incidents.
